BREEZE AERO-SEAL®Clamp

BREEZE AERO-SEAL®Clamp

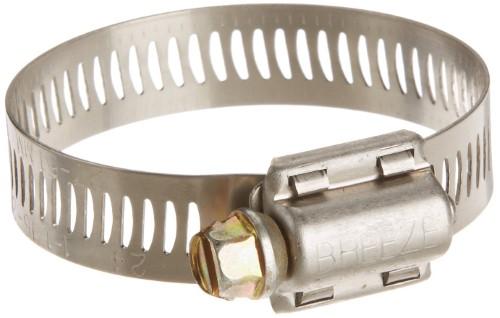

The original perforated stainless steel worm-gear clamp. Heavy duty four-piece Quadra-Lock construction enables far more tightening torque to be delivered to the band perforations. Use for aircraft and heavy-duty industrial applications.

9/16" (14.2 mm) band
5/16" (7.9 mm) slotted hex screw

Per SAE standard J1508 Type “F”



EFFECTIVE DIAMETER RANGE PART NUMBERS
SAE Size Min. Max. Plated Hex Screw 410 SS Hex* Screw 300 SS Hex Screw
in. mm. in. mm.
6 7/16 11 25/32 20 100 06 H 200 06 H 300 06 H
8 1/2 13 29/32 23 100 08 H 200 08 H 300 08 H
10 9/16 14 1-1/16 27 100 10 H 200 10 H 300 10 H
12 11/16 17 1-1/4 32 100 12 H 200 12 H 300 12 H
16 13/16 21 1-1/2 38 100 16 H 200 16 H 300 16 H
20 13/16 21 1-3/4 44 100 20 H 200 20 H 300 20 H
24 1-1/16 27 2 51 100 24 H 200 24 H 300 24 H
28 1-5/16 33 2-1/4 57 100 28 H 200 28 H 300 28 H
32 1-9/16 40 2-1/2 64 100 32 H 200 32 H 300 32 H
36 1-13/16 46 2-3/4 70 100 36 H 200 36 H 300 36 H
40 2-1/16 52 3 76 100 40 H 200 40 H 300 40 H
44 2-5/16 59 3-1/4 83 100 44 H 200 44 H 300 44 H
48 2-9/16 65 3-1/2 89 100 48 H 200 48 H 300 48 H
52 2-13/16 71 3-3/4 95 100 52 H 200 52 H 300 52 H
56 3-1/16 78 4 102 100 56 H 200 56 H 300 56 H
60 3-5/16 84 4-1/4 108 100 60 H 200 60 H 300 60 H
64 3-9/16 91 4-1/2 114 100 64 H 200 64 H 300 64 H
72 1-7/8 48 5 127 100 72 H 200 72 H 300 72 H
80 2-1/2 64 5-1/2 140 100 80 H 200 80 H 300 80 H
88 3-1/8 79 6 152 100 88 H 200 88 H 300 88 H
96 3-5/8 92 6-1/2 165 100 96 H 200 96 H 300 96 H
104 4-1/8 105 7 178 100 104 H 200 104 H 300 104 H
128 5-5/8 143 8-1/2 216 100 128 H 200 128 H 300 128 H
152 7-1/8 181 10 254 100 152 H 200 152 H 300 152 H
188 9-3/8 238 12-1/4 311 100 188 H 200 188 H 300 188 H
